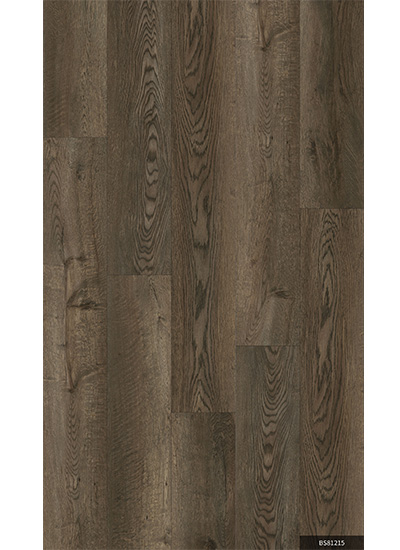

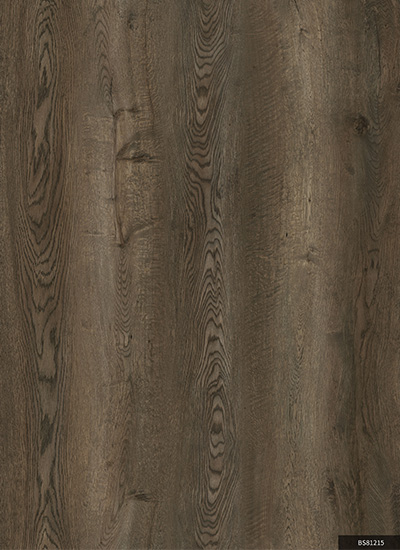

BS81215 Paving
BS81215 Full page| Surface texture | BP，Handscrape，Crystal,EIR,Stone | |
| Wearing Layer： | 0.2mm 0.3mm 0.55mm.0.6mm,0.7mm | |
| Thickness： | 3.2mm 3.5mm 4mm 5mm 6mm 7mm | |
| Main Materials | 100%Virgin New PVC powder:Calcium content 95-97% stone powder | |
| Backing Foam： | IXPE(1mm,1.5mm,2mm) or EVA(1mm,1.5mm,2mm) or CORK(1.5mm,1.8mm) | |
| Click system | Valinge | |
| Finish | UV-Coating | |
| Size | ||
| length（mm | width(mm | thickness(mm) |
| 1220 | 230 | 3.2 / 3.5 / 4 / 5 / 6 / 7 |
| 1500 | 230 | |
| 1524 | 230 | |
| 1500 | 183 | |
| 1230 | 183 | |
| 1220 | 180 | |
| 625 | 125 | |
| 600 | 127 | |
| 635 | 127 | |
| 606 | 303 | |
| Thickness | 3.2- 7.0mm | ||
| Density | 1.95~1.97g/cm³ | ||
| Wearlayer | |||
| Dimensional stability | ISO 23999:2008 | X Direction: 0.08% | |
| Y Direction: 0.07% | |||
| Curling | ISO 23999:2008 | ||
| Residual indentation | ISO 24343-1:2007 | ~0.01mm | |
| Light stability | ISO 105- B02:Method 3 | ≥6 | |
| Castor chair | EN 425 | Typ W | |
| Classification | EN ISO 10582 | 23, 31/33, 42 | |
| Reaction to fire | EN 13501-1 | Bfl-S1 | |
| Slip resistance | DIN 51130 EN 13893 | R10 DS | |
| Wear resistance | EN 660-2 | Group T | |
| Thermal resistance | EN 12667:2001 | 0.038m²K/W | |
| Determination of resistance to stains chemical rsistance | ISO 26987:2008 | Resistant | |
| Squareness | ISO 24342:2007 | Deviation range: | |
| X Direction: 0.00mm~ +0.05mm | |||
| Y Direction: 0.00mm~ +0.05mm | |||
| Straightness | ISO 24342:2007 | ||
| X Direction: 0.00mm~ +0.03mm | |||
| Peel resistance | ISO 24345:2006 | X Direction: 65N/50mm | |
| Y Direction: 65N/50mm | |||
| Burning cigarette test | EN 1399:1997 Method B | Rating 3: Moderate change of gloss and moderate brown stain | |
| Utilization | Recyclable |
| SIZE | THICKNESS | PCS/BOX | BOXES/PALLET | PALLETS/20FT | M2/BOX | M2/20FT | KG/20FT | |
| 5.9"x36.6" | 930x150mm | 4mm | 18 | 56 | 20 | 2.511 | 2812 | 22271 |
| 5mm | 14 | 56 | 20 | 1.953 | 2187 | 21651 | ||
| 5.9"x48" | 1220x150mm | 3.2mm | 15 | 60 | 20 | 2.745 | 3294 | 20870 |
| 4mm | 12 | 60 | 20 | 2.196 | 2635 | 20869 | ||
| 5mm | 10 | 60 | 20 | 1.83 | 2196 | 21740 | ||
| 7.08"x48" | 1220x180mm | 4mm | 12 | 50 | 20 | 2.635 | 2635 | 20869 |
| 5mm | 10 | 50 | 20 | 2.196 | 2196 | 21740 | ||
| 9.05"x48" | 1220x230mm | 4mm | 9 | 52 | 20 | 2.525 | 2626 | 20798 |
| 5mm | 7 | 52 | 20 | 1.964 | 2043 | 20226 | ||
| 11.8"x23.6 | 600x300mm | 4mm | 13 | 54 | 20 | 2.34 | 2527 | 20014 |
| 5mm | 11 | 54 | 20 | 1.98 | 2138 | 21166 | ||
